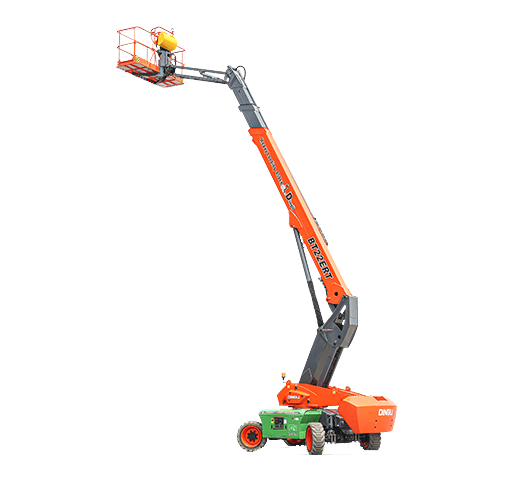

Dingli BA22ERT
The BA22ERT is a robust electric boom lift capable of being driven at full height while carrying a 320kg load.
Equipped with integrated axle, four-wheel drive & two-wheel steering. Component downward design with lowered centre of gravity, lightweight design, energy-saving, more stable
Working Height: 22.21m
Power: All-Electric
-
Working Height: 22.21m
Platform Height: 20.21m

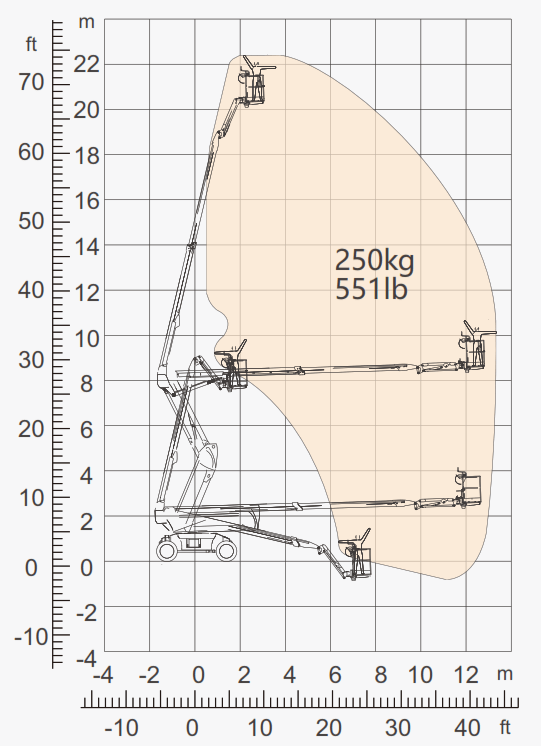

Horizontal Outreach: 13.32m
Travel Height: 2.55m
Travel Width: 2.33m
Travel Length: 9.55m
Weight: 9500kg
Manufacturer: Dingli
Power: All-Electric -
The BA22ERT is a robust electric boom lift capable of being driven at full height while carrying a 320 kg load.
This machine is designed to be effective in both indoor and outdoor use. The BA22ERT features an integrated axle with four-wheel drive and two-wheel steering for improved control. Its lowered centre of gravity and lightweight design provide greater stability and energy efficiency.
The BA22ERT continues the downward design of the whole parts. It adheres to the family modular concept and is equipped with a special axle for construction machinery. It also boasts high-capacity 48V 320Ah lithium battery packs which enable reliable operation with 1.5-hour fast charging.
Other notable features include 4WD, a front oscillating axle, 360-degree continuous turntable rotation and much more.
