• Lift Capacity: 230kg (2 persons + tools)

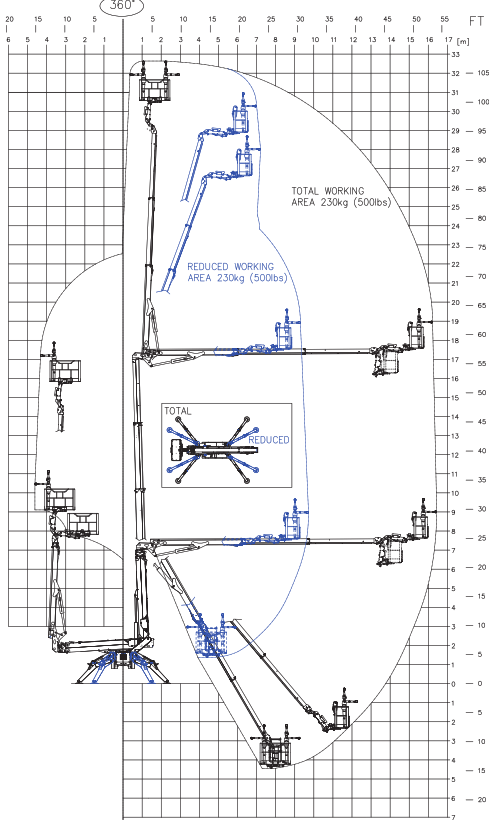

    Lift Height: 32.6m
    Maximum Reach: 16.5m
    Height, Mast Lowered: 1.99m
    Overall Width: 1.7m
    Overall Length: 6.5m
    Manufacturer: Hinowa
    Engine: Bi-Energy

    Download Machine Specification

  • It is available with 3-cylinder diesel Kubota engine D902 and 11 kW (380 V / 50 Hz) electric motor or with 7.6 KWh lithium battery pack. The Lithium-ion system guarantees zero emissions, no noise and low environmental impact. Thus, this platform can be used indoor or in places with poor air exchange, guaranteeing excellent working range and speed of movement. As alternative, the aerial platform LL33.17 is available in the Bi-energy version. Thanks to this system, you can select to operate the power source of your choice. (lithium batteries or combustion engine).

    The wide range of devices and built-in technology mean that this machine is a very useful aerial platform for numerous operations. By using this platform, a variety of jobs performed at height are made easier, such as:

    โ€ข Tree pruning
    โ€ข Painting
    โ€ข Interior and exterior renovations
    โ€ข Cleaning
    โ€ข Solar panel installation
    โ€ข Bridge maintenance
    โ€ข Fun fair maintenance
    โ€ข Hotel maintenance
    โ€ข Sign installation
    โ€ข Roof and gutter maintenance
    โ€ข Electrical system installation and maintenance
