JCB Rotating Telehandler
Reach even greater heights with the world’s favourite telehandler.
Load Capacity: 5500kg
Lift Height: 25.5m
Engine: Diesel
-
Load Capacity: 5500kg
Lift Height: 25.5m
Maximum Reach: 21.4m
Height, Mast Lowered: 3.08m
Overall Width: 2.45m
Overall Length: 8.09m
Manufacturer: JCB
Engine: Diesel -

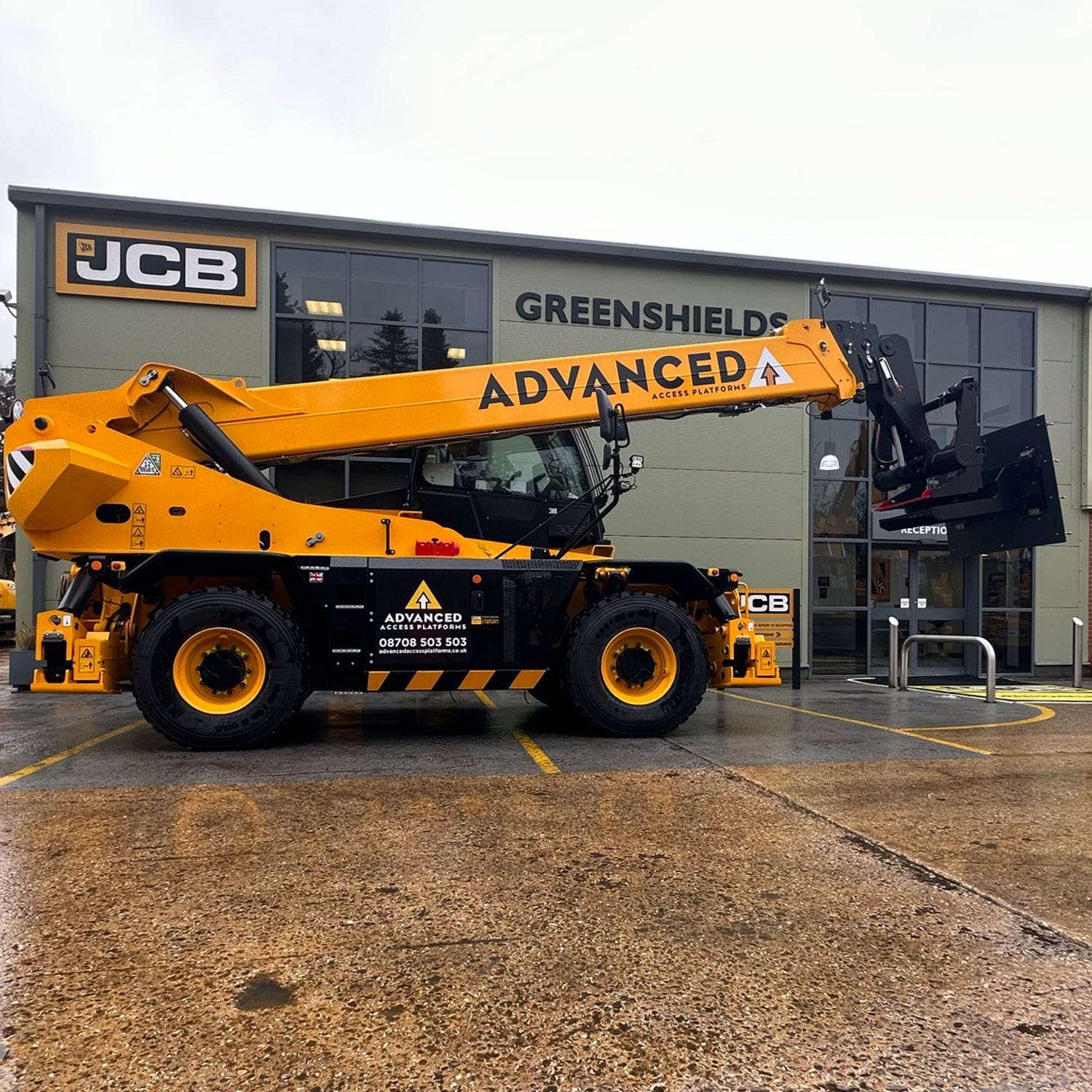

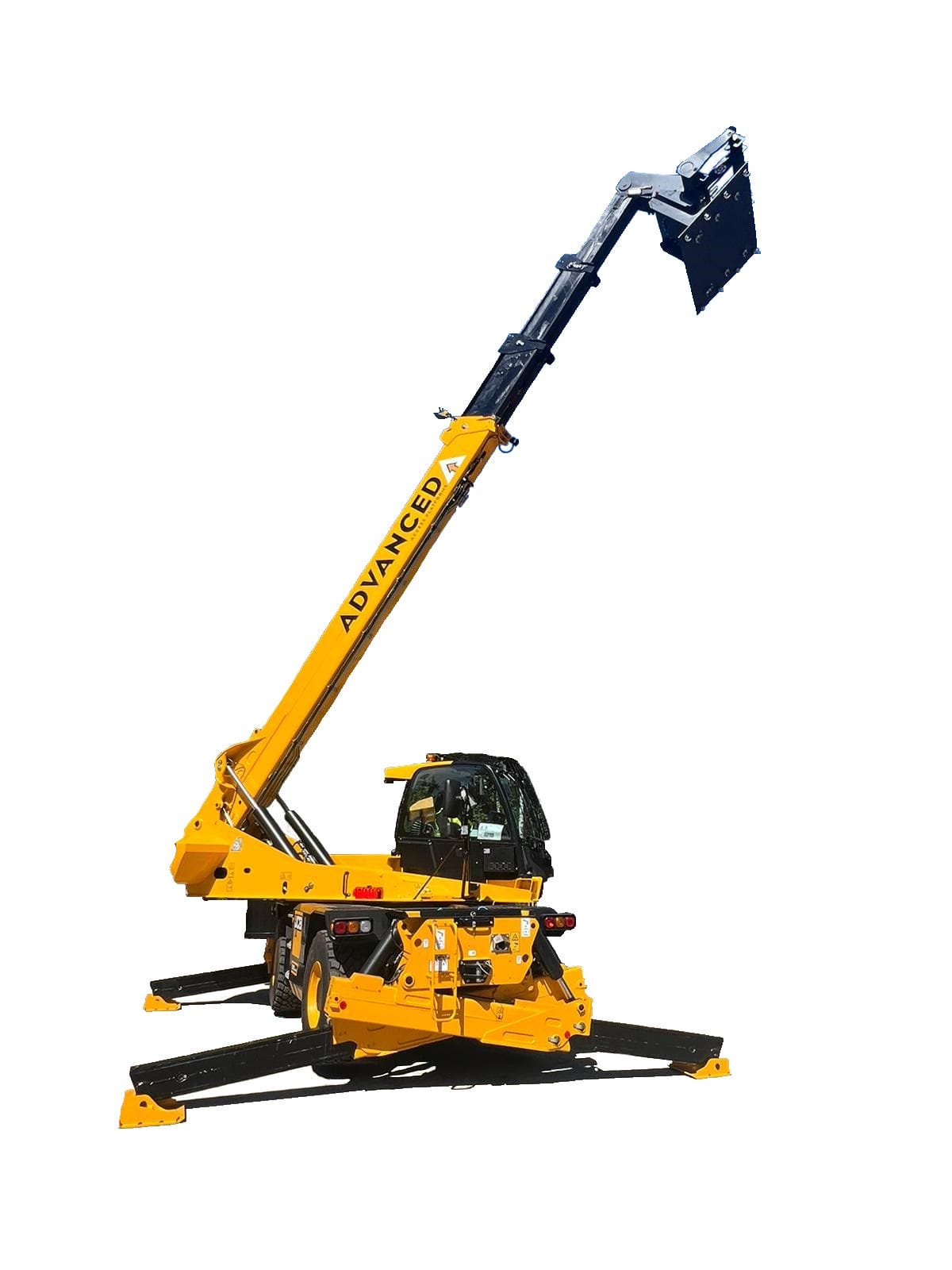

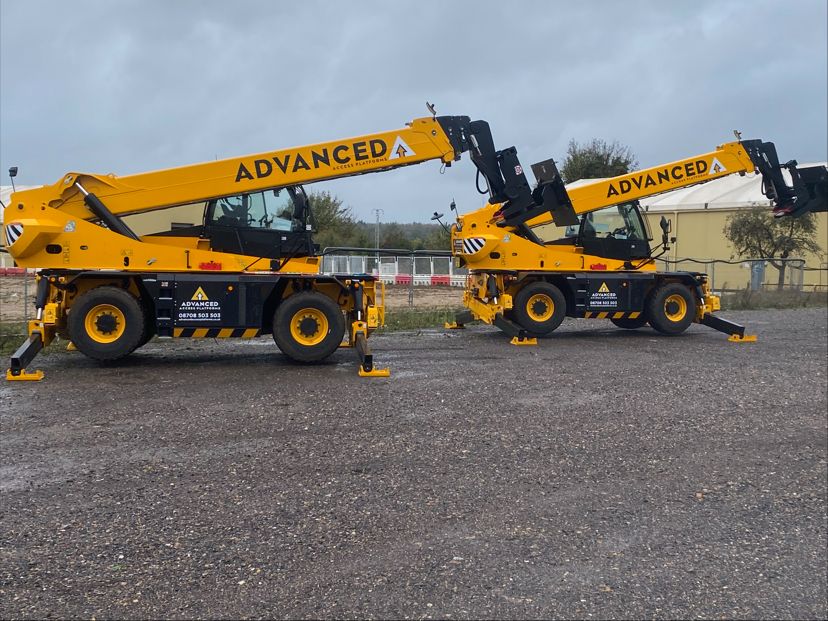

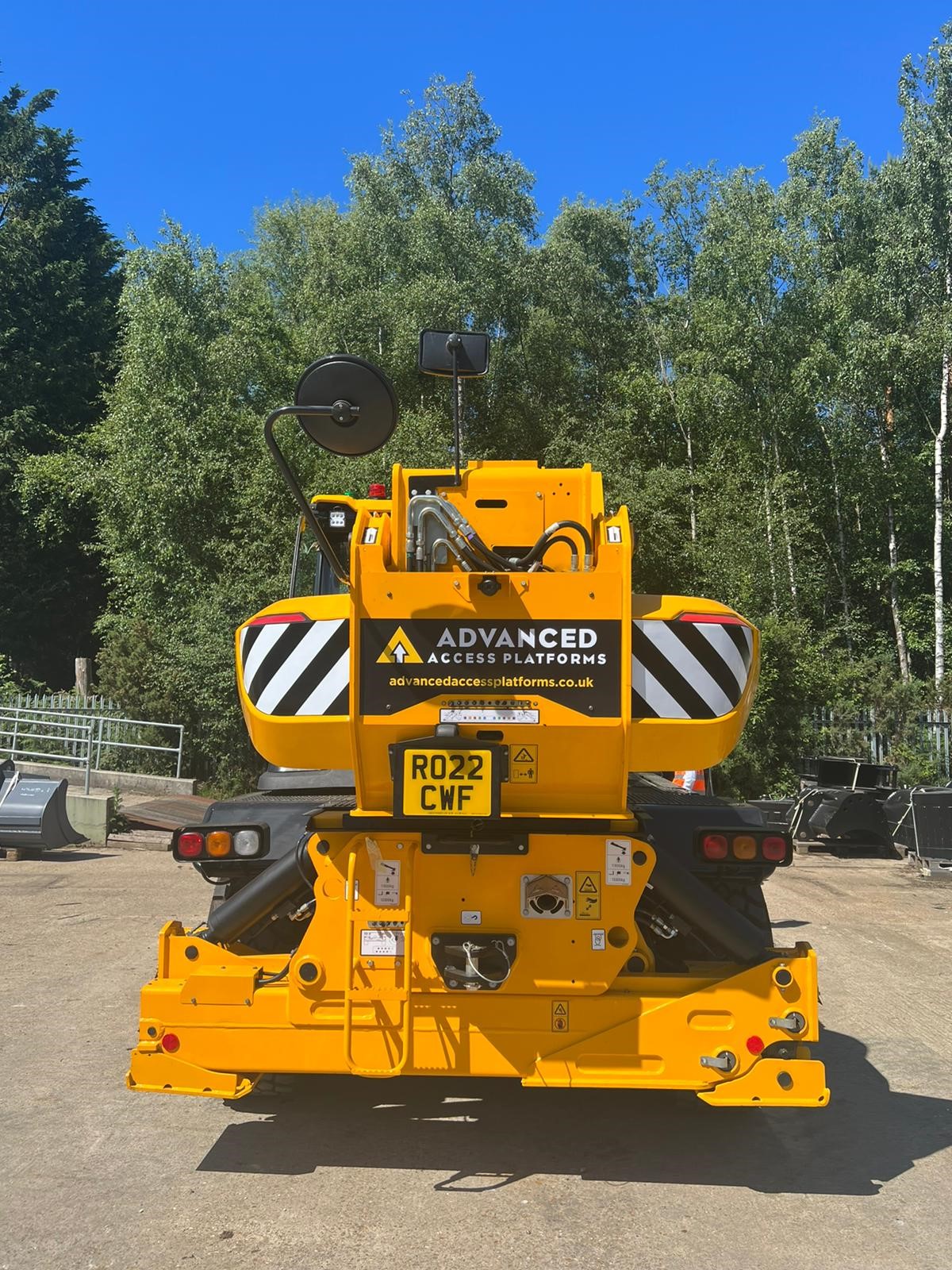

The JCB Rotating Telehandler 555-260R was built using quality components and precision manufacturing techniques. It delivers exceptional reach and lifting performance for demanding applications.

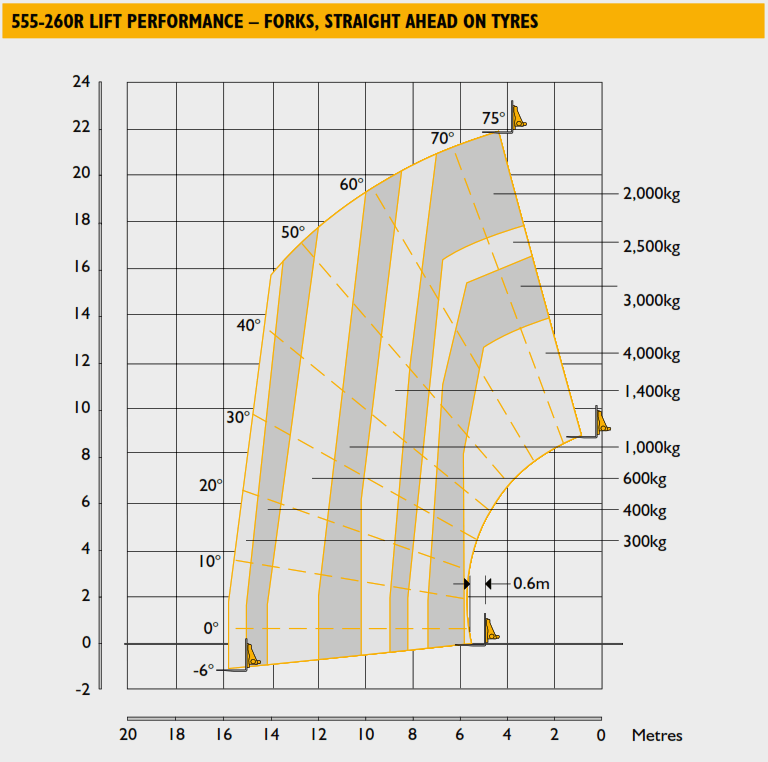

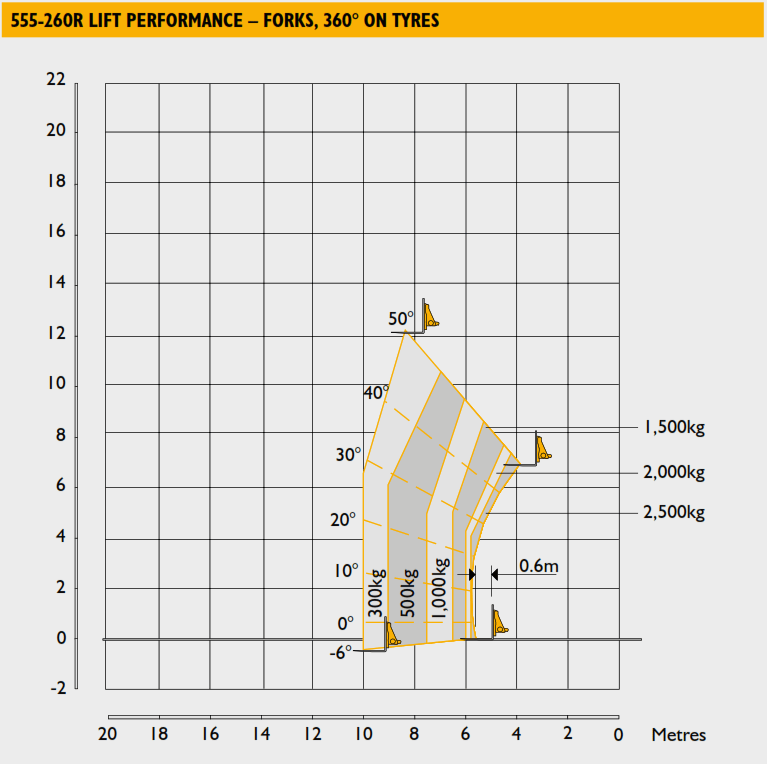

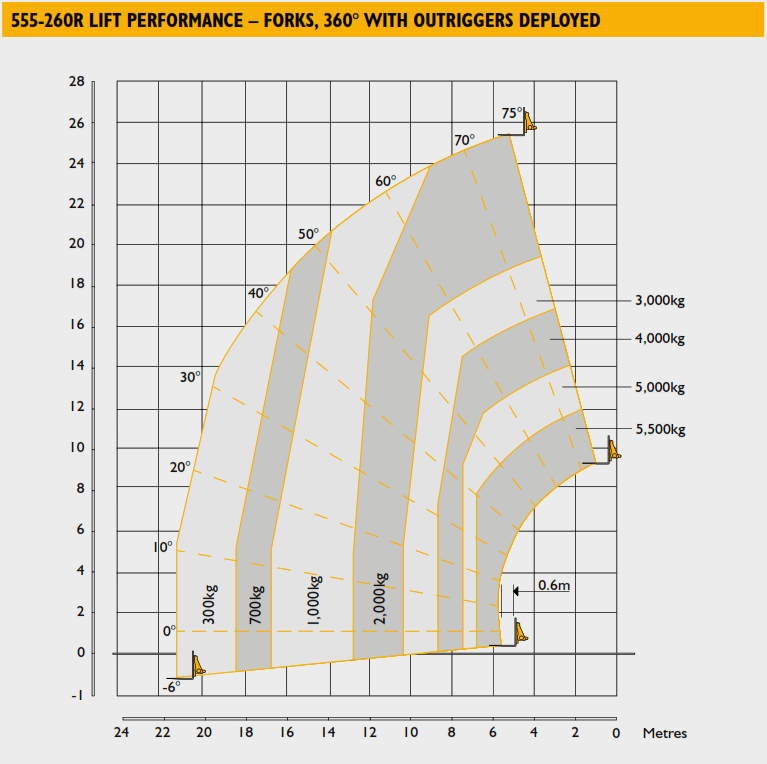

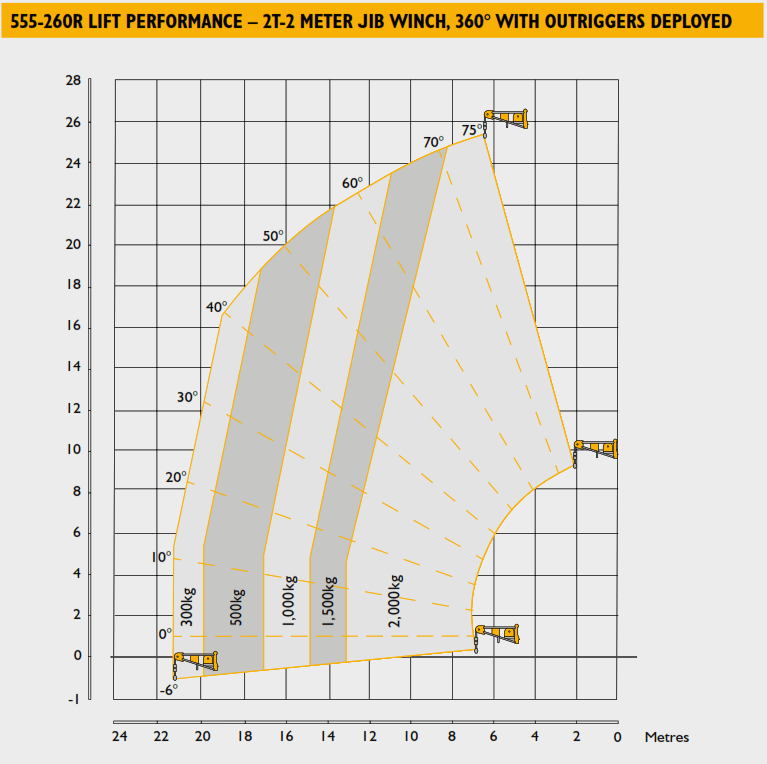

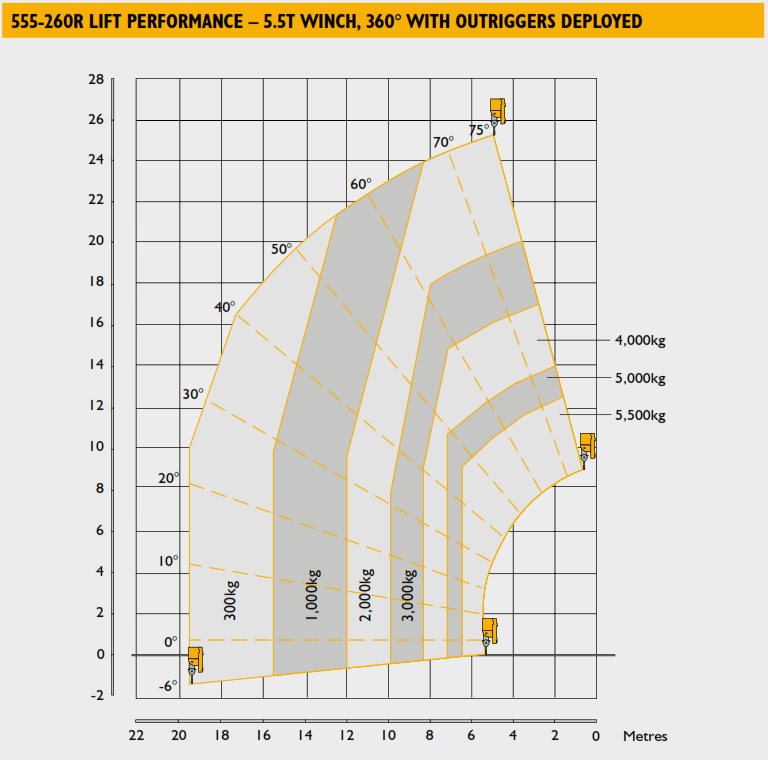

Featuring 360° rotation, it provides a maximum lifting height of 25.5 m and a maximum reach of 21.4 m whilst also having a lift capacity of up to 5500kg. Designed for versatility and efficiency, it offers excellent positioning flexibility for construction, handling, and industrial tasks. Its regenerative hydraulic system helps cut fuel consumption and cycle times.

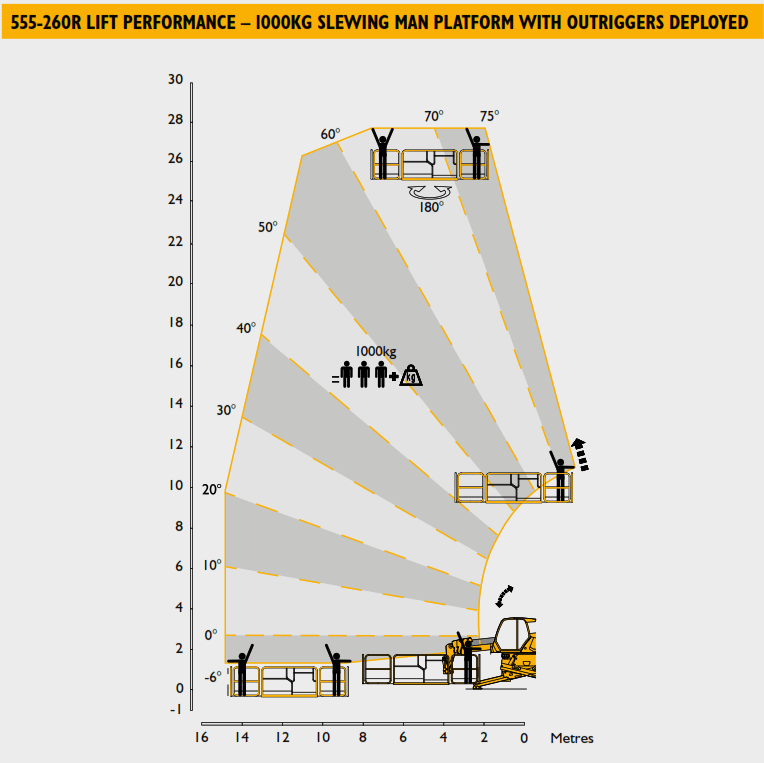

The 555-260R is powered by a 112kW engine. It combines the reach of a crane, the manoeuvrability of a telehandler and the access of a mobile work platform. All in one machine. As a standard, it comes with a man-platform enabled.
A dedicated load monitoring and machine performance screen keeps key information clear and accessible, whilst a one-touch auto deploy, retract and level outrigger system speeds up setup on site.
