• Load Capacity: 363kg
    Working Height: 14.3m
    Stowed Height: 2.74m
    Overall Width: 1.75m
    Overall Length: 3.12m
    Weight: 4,966kg
    Manufacturer: Genie
    Power: Electric

    DOWNLOAD OPERATOR MANUAL

    Download Machine Specification

    • Patented full-time oscillating axle automatically adjusts the axle position based on ground conditions
    • AC power drive system for outstanding worksite performance and lower energy consumption
    • 35% gradeability to get up slopes and loading ramps
    • Industry’s first 14,12 m (46 ft 3 in) full drive height unit in its class
    • Large platform workspace with 1.52 m (5 ft) slide-out extension deck
    • Swing out components trays for easy access
    • User-friendly Smart Link™ control and diagnostic system

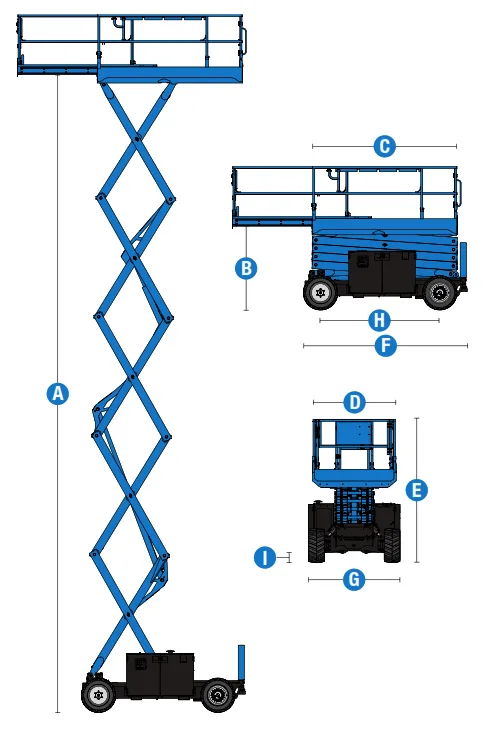

    • Max Working Height 46 ft 3 in | 14.3 m
    • Platform Capacity 800 lb | 363 kg
    • Machine Width 5 ft 9 in | 1.75 m
    • Machine Length 10 ft 3 in | 3.12 m
    • Weight 10,948 lb | 4,966 kg
