• Load Capacity: 320kg
    Working Height: 13.8m
    Stowed Height: 2.62m
    Overall Width: 1.19m
    Overall Length: 2.48m
    Weight: 2,990kg
    Manufacturer: Dingli
    Power: Electric

    DOWNLOAD OPERATOR MANUAL

    Download Machine Specification

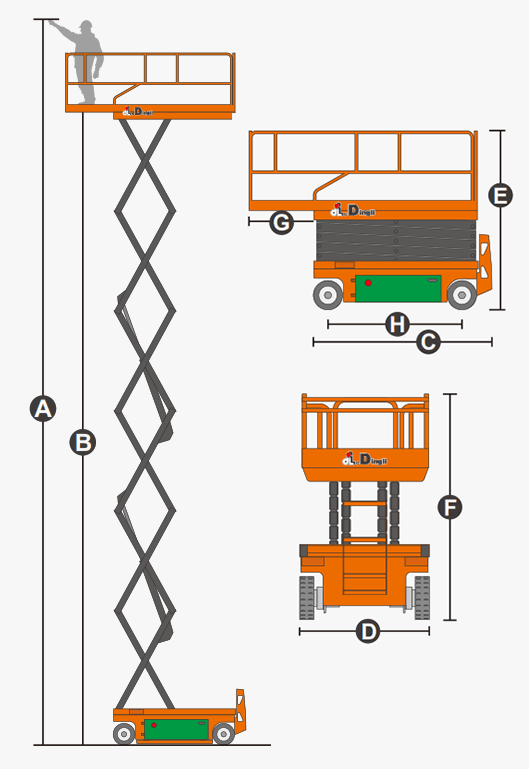

    • Working Height 13.80m/45ft 3in
    • Platform Height 11.80m/38ft 9in
    • Overall Length (With Ladder) 2.48m/8ft 2in
    • Overall Width 1.19m/3ft 11in
    • Overall Height (Rails Up) 2.62m/8ft 7in
    • Overall Height (Rails Down) 2.09m/6ft 10in
    • Platform Size (Length × Width) 2.27m×1.12m/7ft 5in×3ft 8in
    • Platform Extension Size 0.90m/2ft 11in
    • Ground Clearance (Stowed/Raised) 0.10m/0.019m / 4in/1in
    • 87m/6ft 2in
    • Overall Weight (Lead-acid Battery) 2990kg/6591lb
