• Load Capacity: 250kg
    Working Height: 15.7m
    Stowed Height: 2.62m
    Overall Width: 1.25m
    Overall Length: 2.84m
    Weight: 3,360kg
    Manufacturer: Dingli
    Power: Electric

    DOWNLOAD OPERATOR MANUAL

    Download Machine Specification

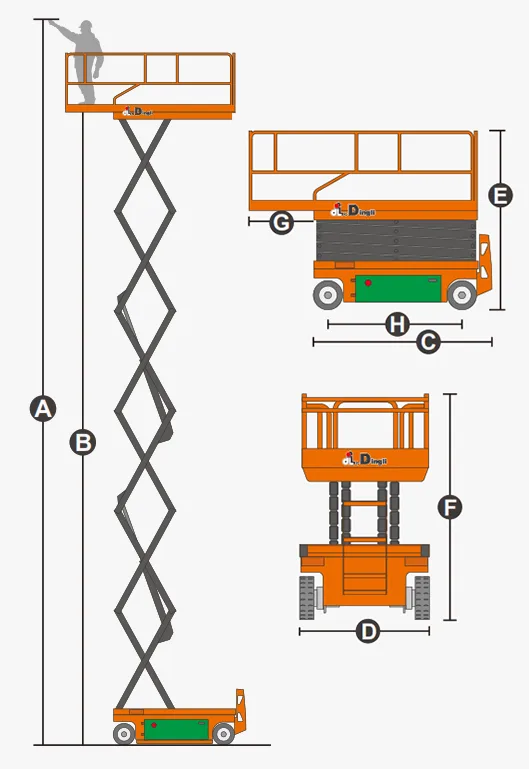

    • Working Height 15.70m/51ft 6in
    • Platform Height 13.70m/44ft 11in
    • Overall Length (With Ladder) 2.84m/9ft 4in
    • Overall Width 1.25m/4ft 1in
    • Overall Height (Rails Up) 2.62m/8ft 7in
    • Overall Height (Rails Down) 2.09m/6ft 10in
    • Platform Size (Length × Width) 2.64m×1.12m/8ft 8in×3ft 8in
    • Platform Extension Size 0.90m/2ft 11in
    • Ground Clearance (Stowed/Raised) 0.10m/0.019m / 4in/1in
    • Wheelbase 2.22m/7ft 3in
    • Overall Weight (Lead-acid Battery) 3360kg/7407lb

Open Trade Account

Related products

Related products

Dingli JCPT1412AC
  • Battery drive, equipped with fully sealed AC system (drive and lift), replacing the traditional DC system (drive and lift), maintenance-free, more waterproof, more efficient and safer
  • Automatic pothole protection system, more safe and reliable
  • Unidirectional extension platform, can quickly reach the operation point
  • Automatic display of fault code for easy maintenance

Load Capacity: 320kg
Working Height: 13.8m

Manufacturer: Dingli
Power: Electric

discover more

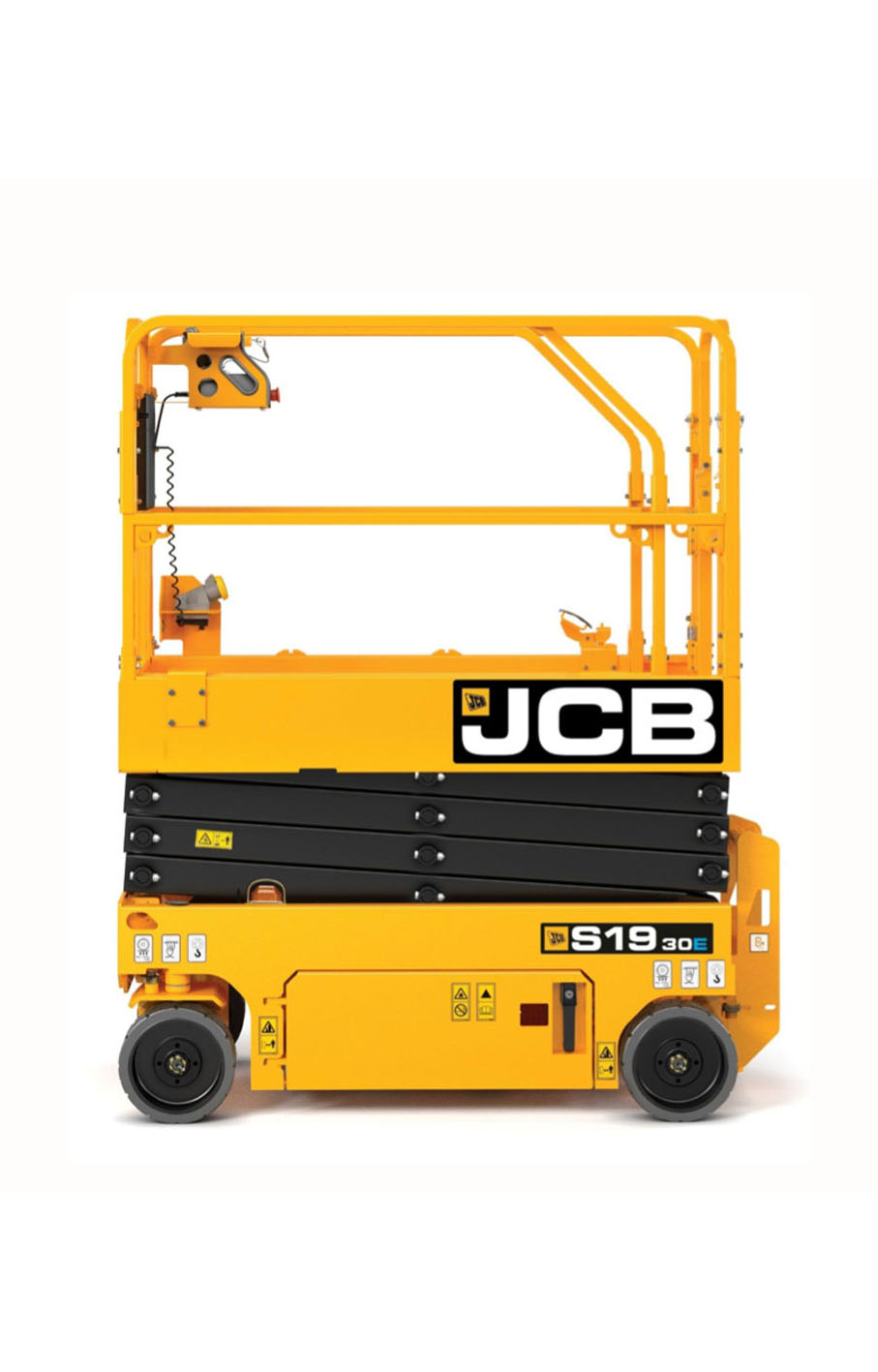

JCB S1930E

JCB have used their experience in designing tough, hardworking equipment to ensure their electric scissors range are also built to higher standards.

Load Capacity: 230kg
Working Height: 7.71m

Manufacturer: JCB
Power: Electric

discover more
Dingli JCPT2223 DC
  • Electric model, equipped with 48V/630Ah high-capacity battery pack, long endurance.
  • No noise, zero emission, suitable for environmentally demanding working conditions.
  • Driveable at full height with large load of 750kg.
  • Four-wheel drive & steering, great rough-terrain performance, automatic levelling.
  • One key extension large deck that can be stopped and used at any extension point.

Load Capacity: 750kg
Working Height: 22m

Manufacturer: Dingli
Power: Electric

discover more
Genie GS-1932

The Genie GS-1932 slab scissor lifts boast quiet electric operation and are ideal for indoor and outdoor applications in tight spaces on firm, level surfaces.

Load Capacity: 227kg
Working Height: 7.85m

Manufacturer: Genie
Power: Electric

discover more
Genie GS-3232 E

The Genie GS-3232 E-Drive slab scissor lift is an electric model ideal for operation in emission and sound-sensitive indoor and outdoor jobsites where space is limited.

Load Capacity: 227kg
Working Height: 11.78m

Manufacturer: Genie
Power: Electric

discover more
SkyJack SJ4740

Skyjack electric scissor lifts have been recognized as an industry leader for over a decade. Our DC scissor lifts are ideal for indoor work where accuracy and precision turn around sensitive material is critical.

Load Capacity: 349kg
Working Height: 13.69m

Manufacturer: Dingli
Power: Electric

discover more
Dingli AMWP8-8100L

AMWP8 Self-propelled Vertical Lifts suitable for warehouse, supermarket, hotel, airport and other narrow space environment

Load Capacity: 227kg
Working Height: 7.6m

Manufacturer: Dingli
Power: Electric

discover more

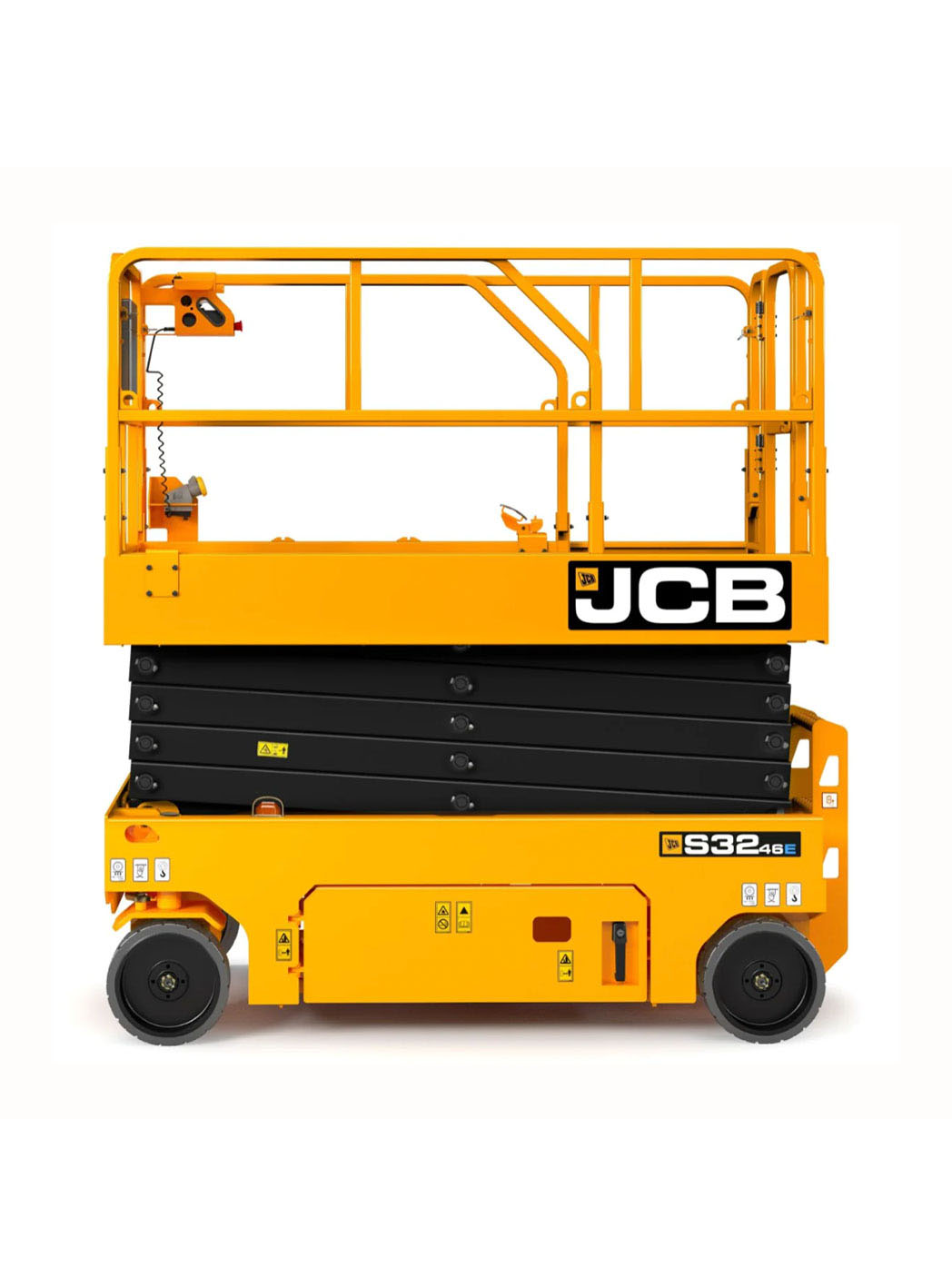

JCB 3246 E
