Genie

Genie GS-4047

Increase productivity in indoor high rise spaces with the Genie® GS™-4047 slab scissor lift thanks to its ability to be driven at full height. Designed for excellent manoeuvrability in tight spaces and narrow aisles.

Lift Capacity: 350kg
Working Height: 13.7m
Manufacturer: Genie
Power: Electric

View Full Specifications

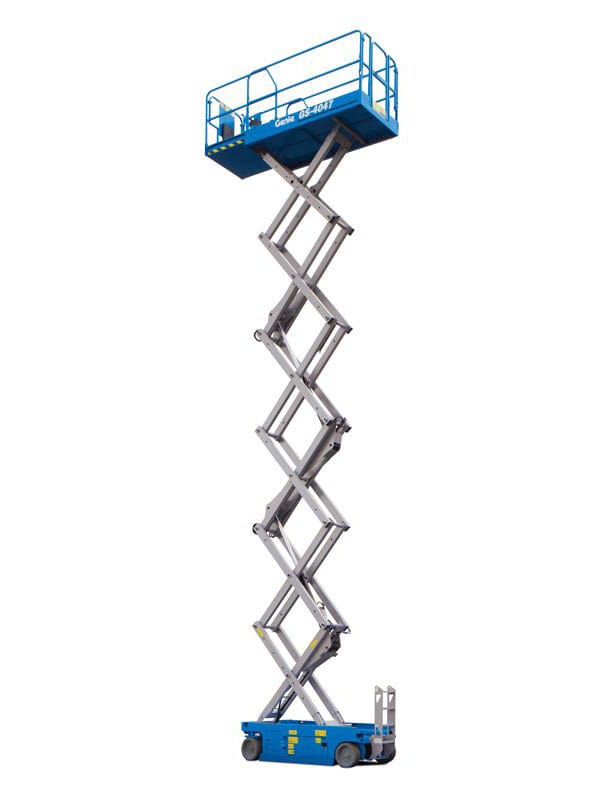

gs-4047_cutout-1

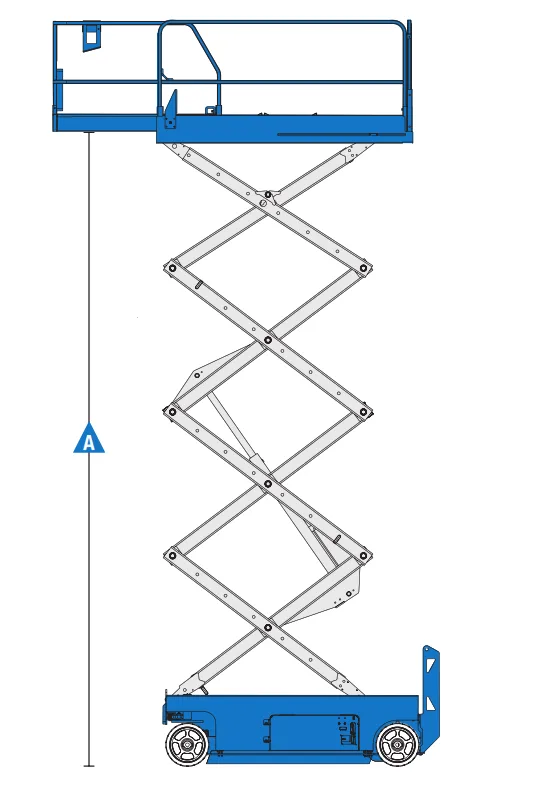

Screenshot 2023-10-13 152915
gs-4047_cutout-1
Screenshot 2023-10-13 152915

  • Lift Capacity: 350kg
    Working Height: 13.7m
    Stowed Height: 2.54m
    Overall Width: 1.19m
    Overall Length: 2.48m
    Weight: 3,221kg
    Manufacturer: Genie
    Power: Electric

            DOWNLOAD OPERATOR MANUAL

    Download Machine Specification

  • Increase productivity in indoor high rise spaces with the Genie® GS™-4047 slab scissor lift thanks to its ability to be driven at full height. Designed for excellent manoeuvrability in tight spaces and narrow aisles.

    Front-wheel drive and zero inside turning radius. Compact dimensions for easily passing through standard double doors. 25% gradeability to get up slopes and loading ramps. Link stack is centered at full elevation and platform extension for machine rigidity. 0.91 m (36 in) extension deck provides maximum platform workspace for up to 3 workers and tools. Swing out components trays for easy access. User-friendly Smart Link™ control and diagnostic system
