Genie

Genie Z45Bi

Z45/25J DC Bi-energy articulating boom lift is equipped with an on-board diesel-powered generator acting as a 100-amp battery charger to provide additional power for the most demanding jobsites.

Working Height: 15.94m
Power: Bi-Energy

View Full Specifications
z-4525Bi
cb
Pic 95
Pic 111
Screenshot 2023-10-12 081120
z-4525Bi
cb
Pic 95
Pic 111
Screenshot 2023-10-12 081120

  • Working Height: 15.94m
    Platform Height: 13.94m
    Travel Height: 2m
    Travel Width: 1.79m
    Travel Length: 6.83m
    Weight: 7394kg / 7620kg

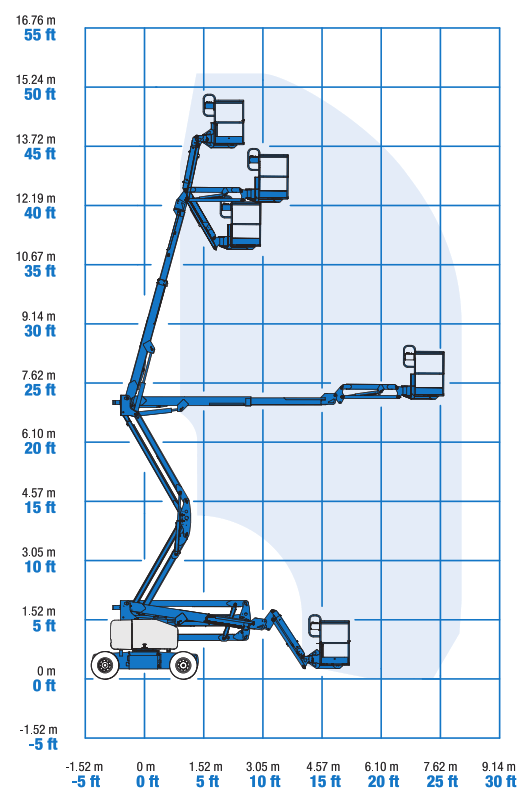

    Horizontal Outreach: 7.65m
    Manufacturer: Genie
    Power: Bi-Energy

    DOWNLOAD OPERATOR MANUAL

    Download Machine Specification

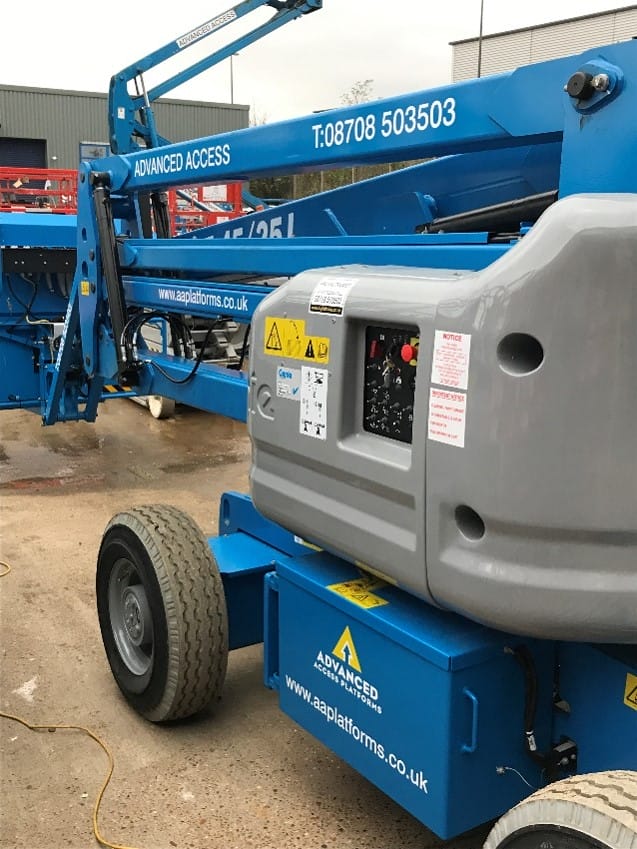

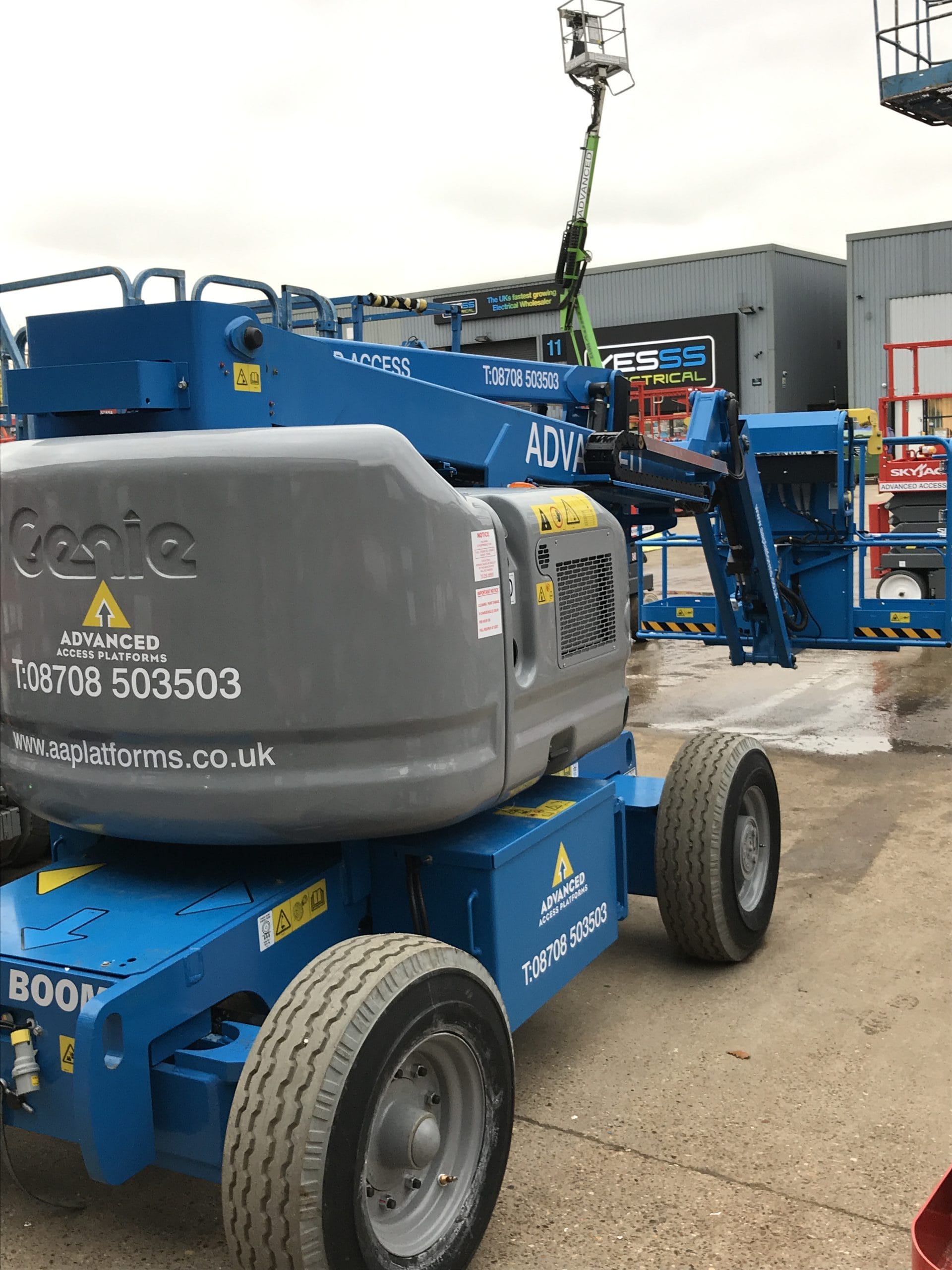

  • The Genie Z45Bi (Bi-Energy) articulating boom lift combines electric operation with additional diesel-powered charging capability.

    It's equipped with an onboard diesel-powered generator that provides a 100-amp battery charger for demanding job sites. Zero tailswing and a tight turning radius enable easy manoeuvrability in confined areas. The machine also offers 30% gradability and travel speeds up to 3 mph (4.8 km/h) for excellent drive performance.

    A 1.52 m articulating jib with 135° vertical rotation allows precise worker positioning. The 160° hydraulic platform rotation and self-levelling platform provide simple and efficient operation. Its large, 1.83m (6 ft), all-steel platform lifts up to 227kg (500 lb).
