• Load Capacity: 750kg
    Working Height: 22m
    Stowed Height: 3.86m
    Overall Width: 2.46m
    Overall Length: 4.95m
    Weight: 13,400kg
    Manufacturer: Dingli
    Power: Electric

    DOWNLOAD OPERATOR MANUAL

    Download Machine Specification

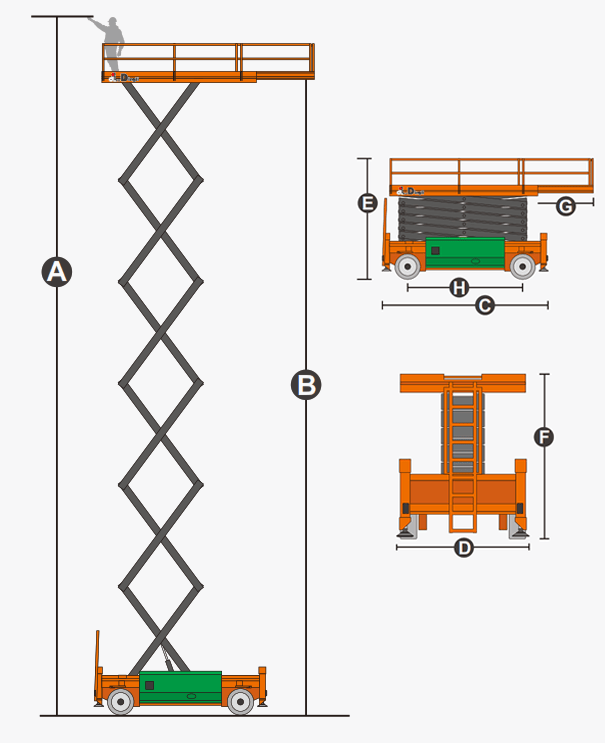

    • Working Height 22.00m/72ft 2in
    • Platform Height 20.00m/65ft 7in
    • Overall Length (With Outriggers) 4.95m/16ft 3in
    • Overall Width 2.46m/8ft 1in
    • Overall Height (Rails Up) 3.86m/12ft 8in
    • Overall Height (Rails Down) 3.00m/9ft 10in
    • Platform Size (Length × Width) 4.59m×2.25m/15ft 2in×7ft 5in
    • Platform Extension Size 2.70m/8ft 10in
    • Ground Clearance (Stowed/Raised) 0.40m/1ft 4in
    • Overall Weight (With Outriggers) 13400kg/29541lb
    • W.L 750kg/1653lb
